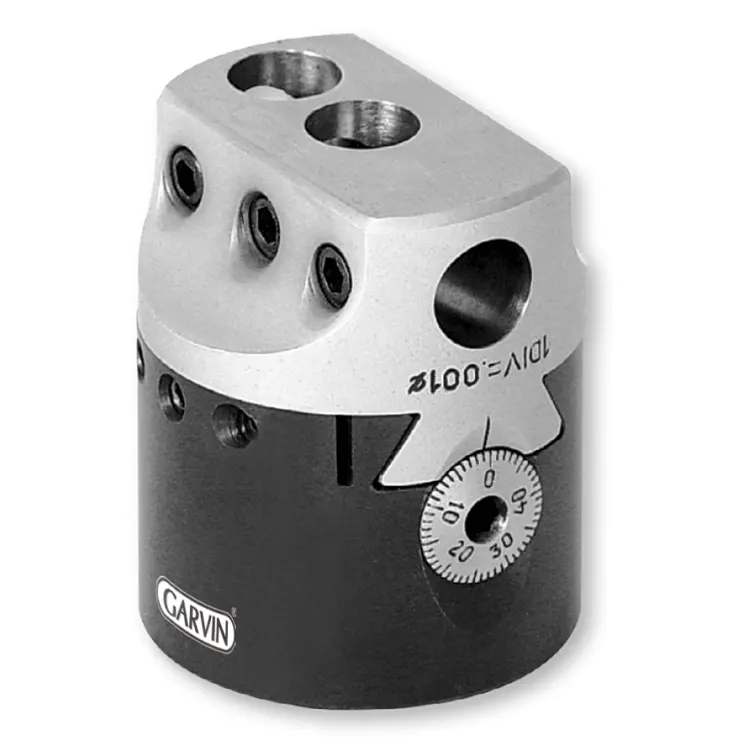

Boring Head – 50mm x 1-1/2"x18 TPI

Description

The offset boring is an attachment that fits the milling
machine spindle and permits most drilled holes to have a better finish and
greater diameter accuracy.  Offset boring
head are used to create large hole when tolerance do not allow for a drill bit
or do not have a large enough drill or reamer.
An offset boring head can be used to enlarge the hole or adjust the hole
center line in certain instances.

• HEAD DIA.:-50mm
• MOUNTING THREAD:-1/2”x18 TPI
• BORING TOOL DIA. :-12mm
• CENTER DISTANCE B/W HOLES:-16mm
• MINIMUM BORE ;-10mm
• MAXIMUM BORE:-100 mm
